Product Description

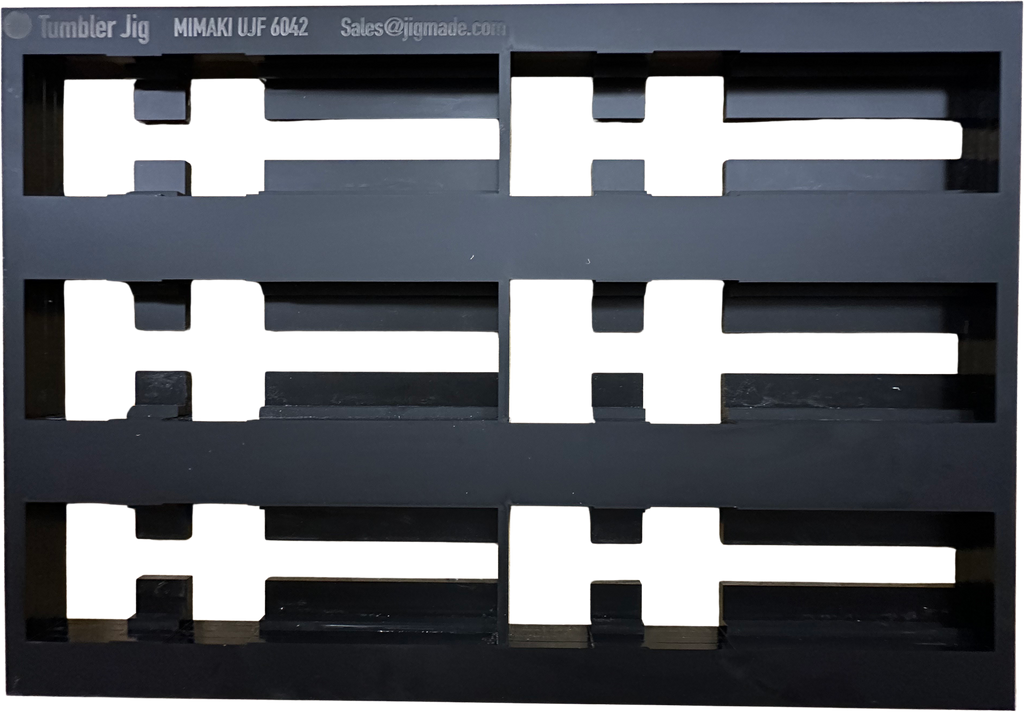

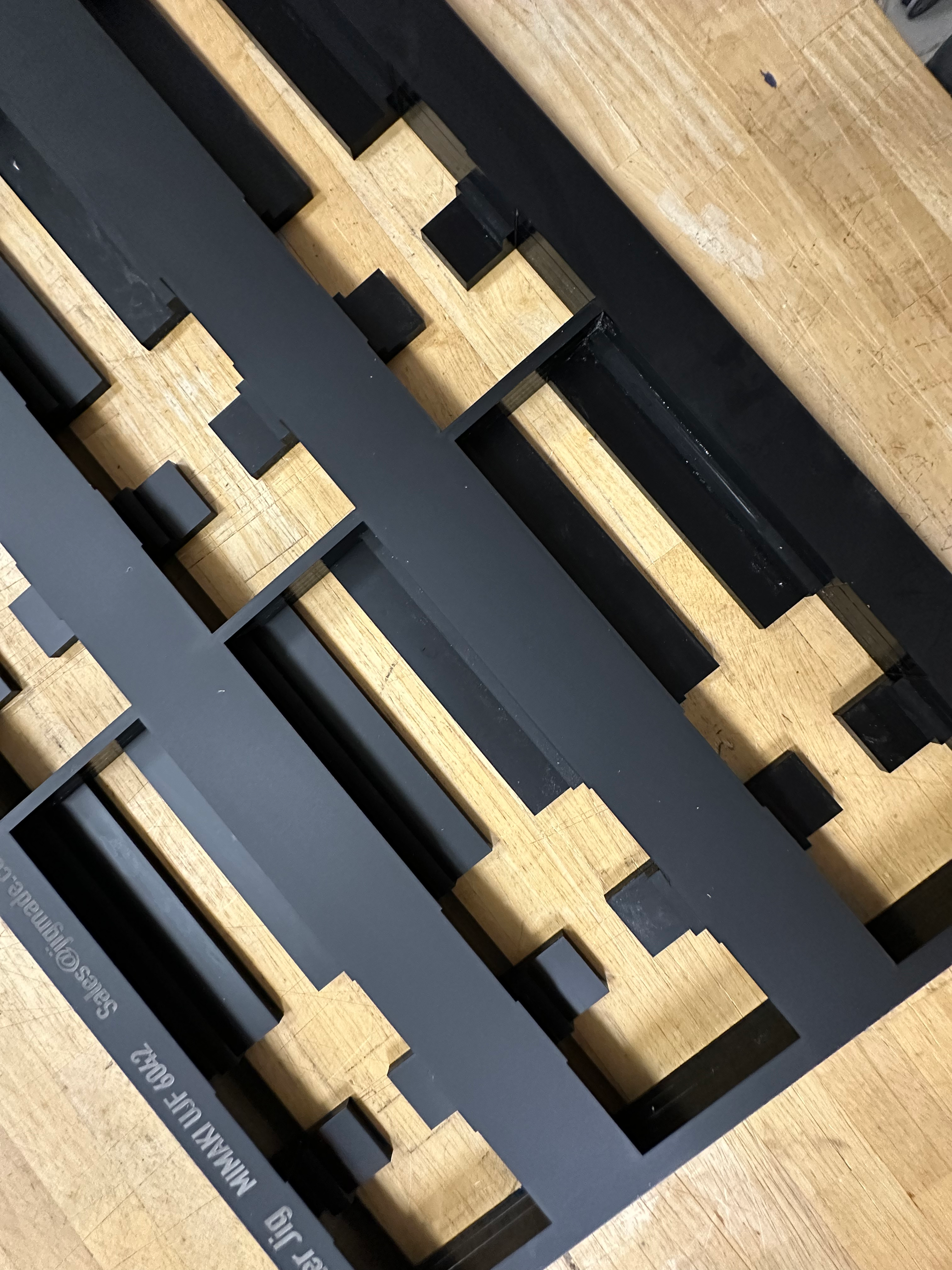

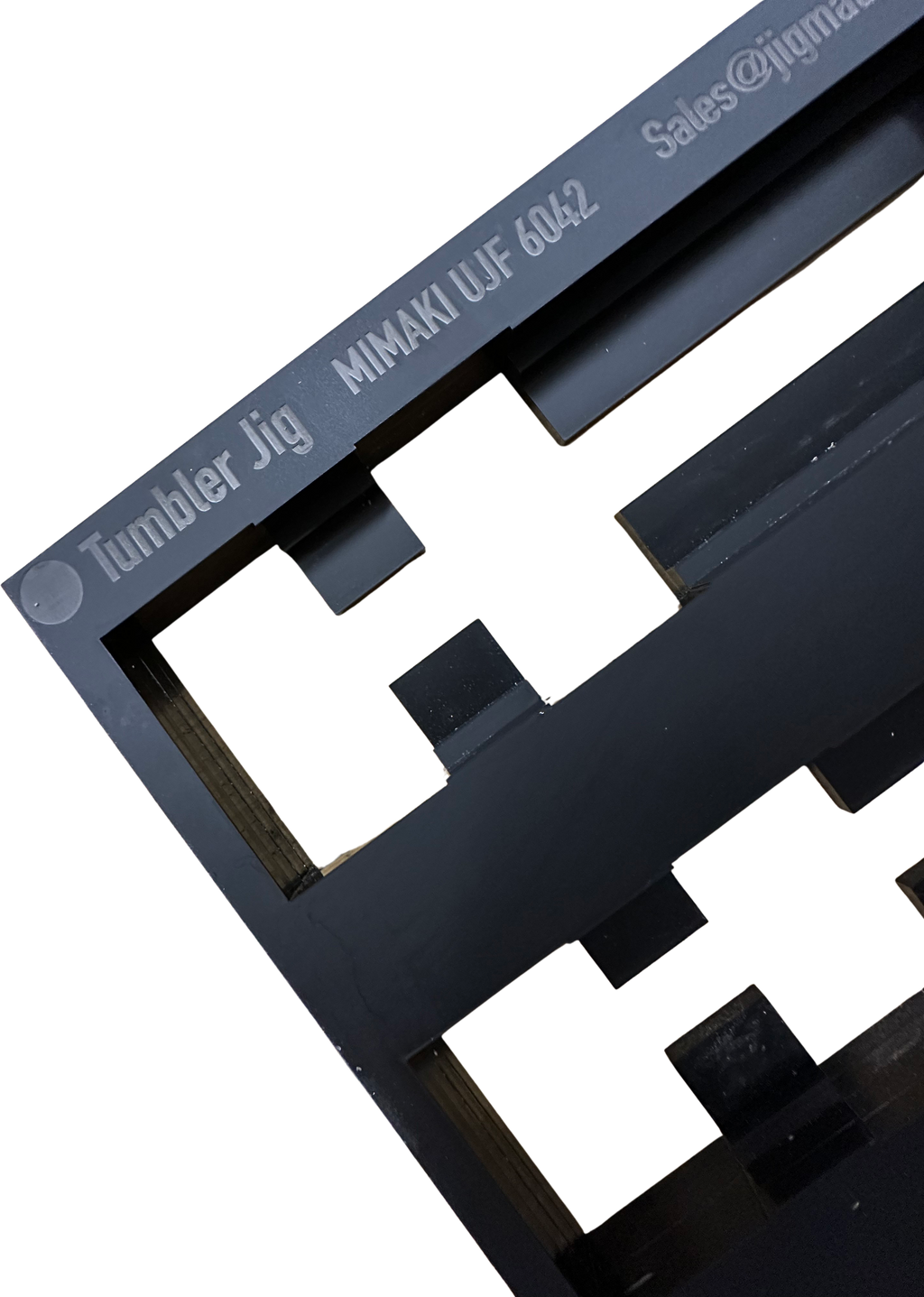

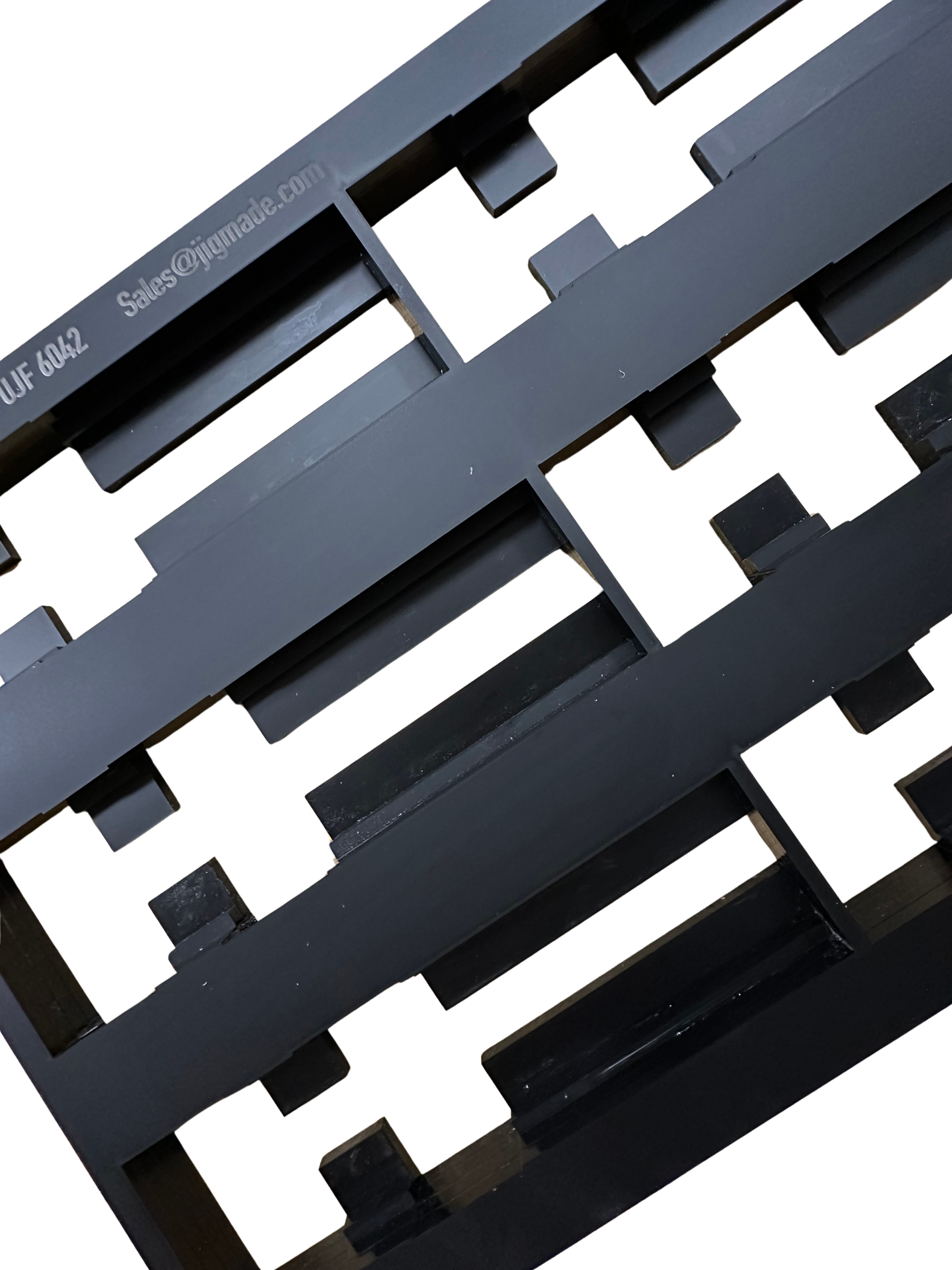

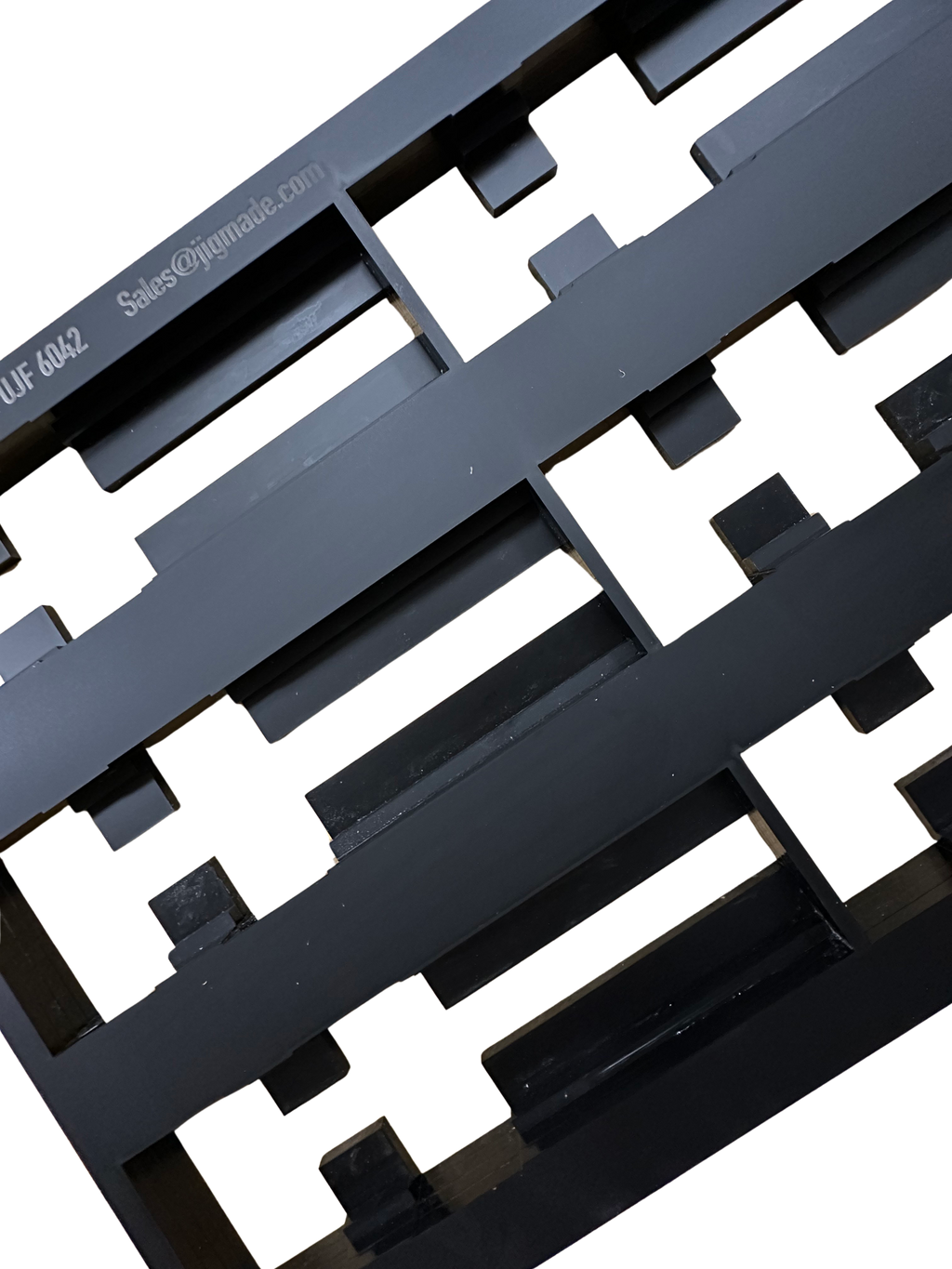

This production jig is designed to help improve alignment, repeatability, and workflow efficiency when printing on tumblers using Mimaki UJF 6042, Mimaki UJF 6042 MkII, Mimaki UJF 6042 MkIIe. It is ideal for print shops, personalization businesses, promotional product companies, award shops, gift manufacturers, and UV printing teams that need a consistent setup for batch production.
The jig helps position each tumbler in a repeatable layout, reducing manual measuring and helping operators maintain consistent artwork placement from one production run to the next. It is especially useful for personalized tumblers, branded drinkware, corporate gifts, and promotional drinkware.
A matching digital PDF template and RasterLink XML file are included to help you prepare artwork and align your print layout with the physical jig.
Key Features
- Capacity: 6 positions
- Supported size range: 12oz - 45oz
- Designed to support repeatable printing on tumblers
- Compatible with Mimaki UJF 6042, Mimaki UJF 6042 MkII, Mimaki UJF 6042 MkIIe
- Helps improve product placement, alignment, and repeatability
- Supports a more consistent production workflow for UV flatbed printing
- Includes a digital PDF template for artwork setup
- Includes a RasterLink XML file for supported Mimaki production workflow
- Helps reduce manual measuring and positioning time
- Ideal for batch printing and repeat production
- Designed for professional UV print shop use
Printer Compatibility
This product is designed for use with the following printer or workflow setup:
- Mimaki UJF 6042
- Mimaki UJF 6042 MkII
- Mimaki UJF 6042 MkIIe
Important: For Mimaki UJF 6042 series products, the jig is designed around the printer’s maximum printable area unless otherwise stated. The physical printer bed may be larger than the usable print area.
Product Specifications
| Product Type | Tumbler |
| Compatible Printer Models | Mimaki UJF 6042, Mimaki UJF 6042 MkII, Mimaki UJF 6042 MkIIe |
| Capacity / Size 1 | 6 positions |
| Capacity / Size 2 | 12oz - 45oz |
| Recommended Use | UV flatbed printing workflow for tumblers |
| Digital Template Included | PDF template included |
| RasterLink File Included | RasterLink XML file included |
| Physical Product Included | Yes |
| Tumbler Included | No, tumblers are not included |
What’s Included
- 1 physical tumbler printing jig
- 1 digital PDF template for artwork setup
- 1 RasterLink XML file
What’s Not Included
- Tumblers are not included
- Printer is not included
- Artwork design service is not included unless purchased separately
- Ink, primer, cleaning supplies, and production accessories are not included
- Full-bed alignment base is not included unless purchased separately
Recommended Applications
- Personalized tumbler printing
- Corporate drinkware production
- Branded tumbler gifts
- Promotional drinkware
- Event merchandise
- Batch UV printing on tumblers
Best For
- UV printing shops
- Personalization businesses
- Promotional product companies
- Award and engraving shops
- Gift product manufacturers
- Print shops producing repeat custom products
- Businesses using flatbed UV printers for batch production
How It Helps Your Workflow
Printing on tumblers requires consistent placement to achieve clean, repeatable results. This jig helps keep each item positioned in a fixed layout, reducing setup time and helping operators maintain better alignment across multiple production runs.
The included PDF template helps you set up artwork to match the jig layout. The included RasterLink XML file supports a more organized Mimaki production workflow when preparing supported print files and layouts.
Artwork Setup
Your order includes a digital PDF template to help you position your artwork before printing. We recommend placing your artwork within the template and performing a test print before running full production.
For best results, confirm product size, artwork position, printer settings, product height, and print alignment before starting a production batch.
Important Notes
- This product is designed around the listed product size, capacity, or printer workflow shown in the specifications above.
- For Mimaki UJF 6042 series products, this jig is designed for the printer’s maximum printable area unless otherwise stated.
- Tumblers are not included with this product.
- Always confirm product fit and print alignment before running production.
- Different tumbler brands or blanks may have slight size, shape, coating, or surface variations.
- Printer settings, product height, ink adhesion, and operator setup may affect final print results.
- We recommend testing your artwork and adhesion process before full production.
Why Choose This Jig?
This jig is built for production efficiency and repeatability. It gives users of Mimaki UJF 6042, Mimaki UJF 6042 MkII, Mimaki UJF 6042 MkIIe a more organized way to print tumblers for customers, events, businesses, schools, teams, and promotional product orders.
With the included digital PDF template and RasterLink XML file, you can create a repeatable artwork workflow that helps reduce setup time and supports more consistent print placement.
