Product Description

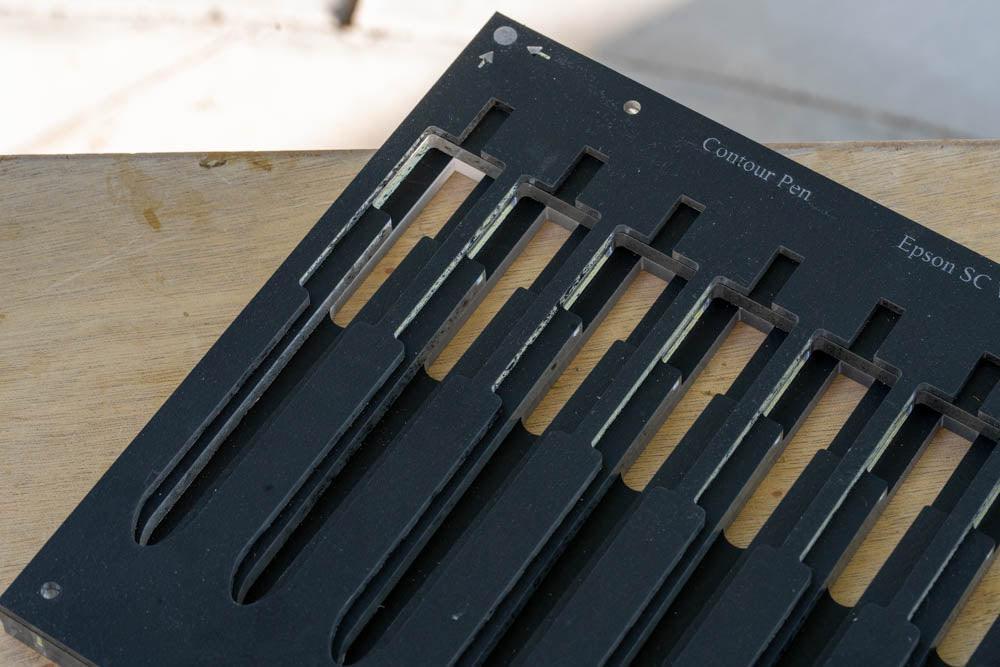

This production jig is designed to help improve alignment, repeatability, and workflow efficiency when printing on contour pens using Mimaki UJF 7151, Mimaki UJF 7151 Plus, Mimaki UJF 7151 Plus II. It is ideal for print shops, personalization businesses, promotional product companies, award shops, gift manufacturers, and UV printing teams that need a consistent setup for batch production.

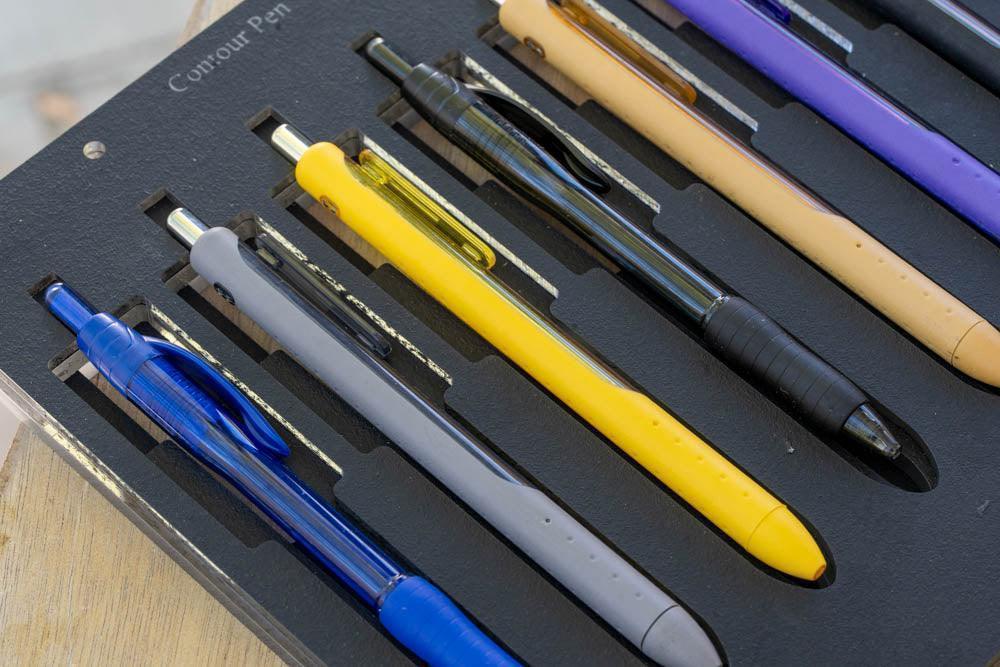

The jig helps position each contour pen in a repeatable layout, reducing manual measuring and helping operators maintain consistent artwork placement from one production run to the next. It is especially useful for custom contour pens, logo pens, promotional pens, and personalized writing instruments.
A matching digital PDF template is included to help you prepare artwork and align your print layout with the physical jig.
Key Features
- Designed to support repeatable printing on contour pens
- Compatible with Mimaki UJF 7151, Mimaki UJF 7151 Plus, Mimaki UJF 7151 Plus II
- Helps improve product placement, alignment, and repeatability
- Supports a more consistent production workflow for UV flatbed printing
- Includes a digital PDF template for artwork setup
- Helps reduce manual measuring and positioning time
- Ideal for batch printing and repeat production
- Designed for professional UV print shop use
Printer Compatibility
This product is designed for use with the following printer or workflow setup:
- Mimaki UJF 7151
- Mimaki UJF 7151 Plus
- Mimaki UJF 7151 Plus II
Please confirm your printer model, product size, print setup, and artwork layout before production.
Product Specifications
| Product Type | Contour Pen Printing Jig |
| Compatible Printer Models | Mimaki UJF 7151, Mimaki UJF 7151 Plus, Mimaki UJF 7151 Plus II |
| Recommended Use | UV flatbed printing workflow for contour pens |
| Digital Template Included | PDF template included |
| Physical Product Included | Yes |
| Contour Pen Included | No, contour pens are not included |
What’s Included
- 1 physical contour pen printing jig
- 1 digital PDF template for artwork setup
What’s Not Included
- Contour pens are not included
- Printer is not included
- Artwork design service is not included unless purchased separately
- Ink, primer, cleaning supplies, and production accessories are not included
- Full-bed alignment base is not included unless purchased separately
Recommended Applications
- Contour pen printing
- Logo pen printing
- Promotional pen production
- Corporate gift pens
- Personalized pens
- Batch UV printing on pens
Best For
- UV printing shops
- Personalization businesses
- Promotional product companies
- Award and engraving shops
- Gift product manufacturers
- Print shops producing repeat custom products
- Businesses using flatbed UV printers for batch production
How It Helps Your Workflow
Printing on contour pens requires consistent placement to achieve clean, repeatable results. This jig helps keep each item positioned in a fixed layout, reducing setup time and helping operators maintain better alignment across multiple production runs.
The included PDF template helps you set up artwork to match the jig layout, making repeat orders and batch production easier to manage.
Artwork Setup
Your order includes a digital PDF template to help you position your artwork before printing. We recommend placing your artwork within the template and performing a test print before running full production.
For best results, confirm product size, artwork position, printer settings, product height, and print alignment before starting a production batch.
Important Notes
- Contour pens are not included with this product.
- Always confirm product fit and print alignment before running production.
- Different contour pen brands or blanks may have slight size, shape, coating, or surface variations.
- Printer settings, product height, ink adhesion, and operator setup may affect final print results.
- We recommend testing your artwork and adhesion process before full production.
Why Choose This Jig?
This jig is built for production efficiency and repeatability. It gives users of Mimaki UJF 7151, Mimaki UJF 7151 Plus, Mimaki UJF 7151 Plus II a more organized way to print contour pens for customers, events, businesses, schools, teams, and promotional product orders.
With the included digital PDF template, you can create a repeatable artwork workflow that helps reduce setup time and supports more consistent print placement.
