Production Description

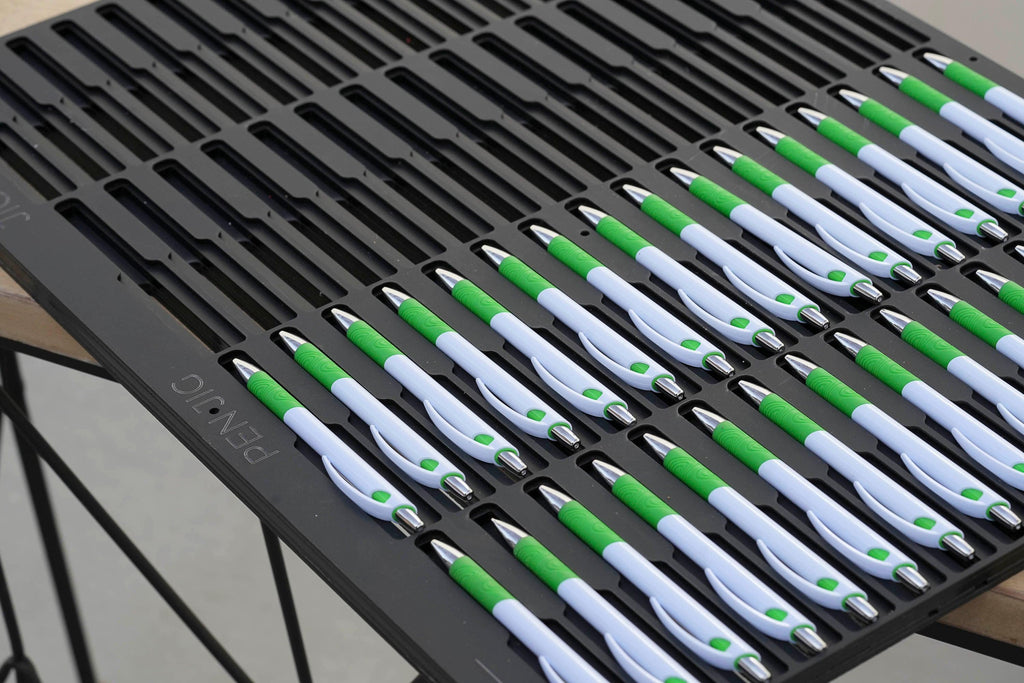

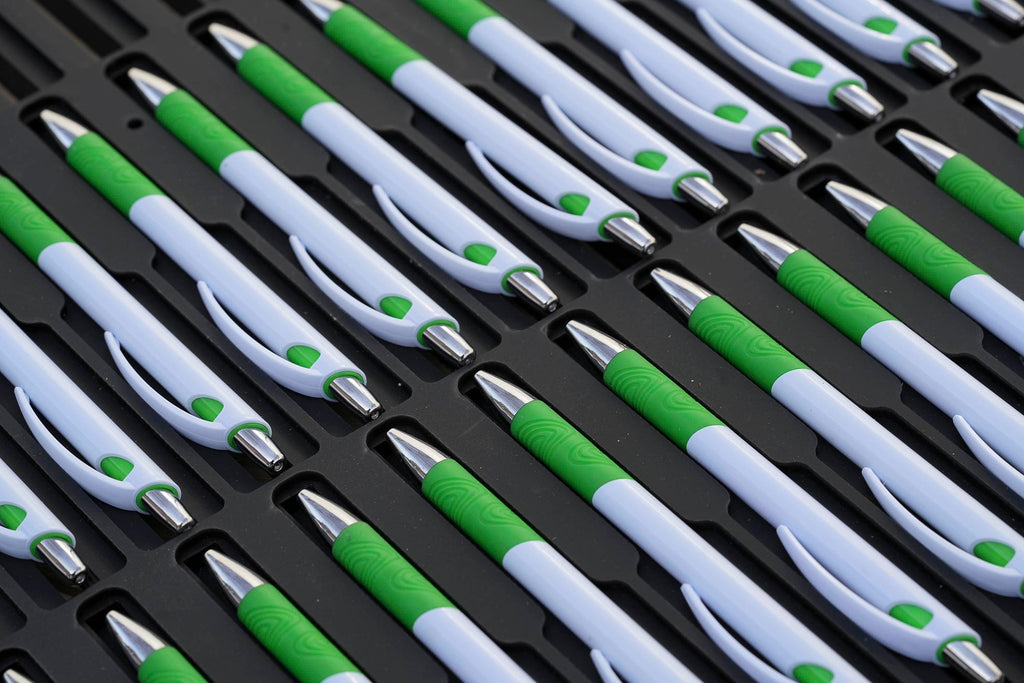

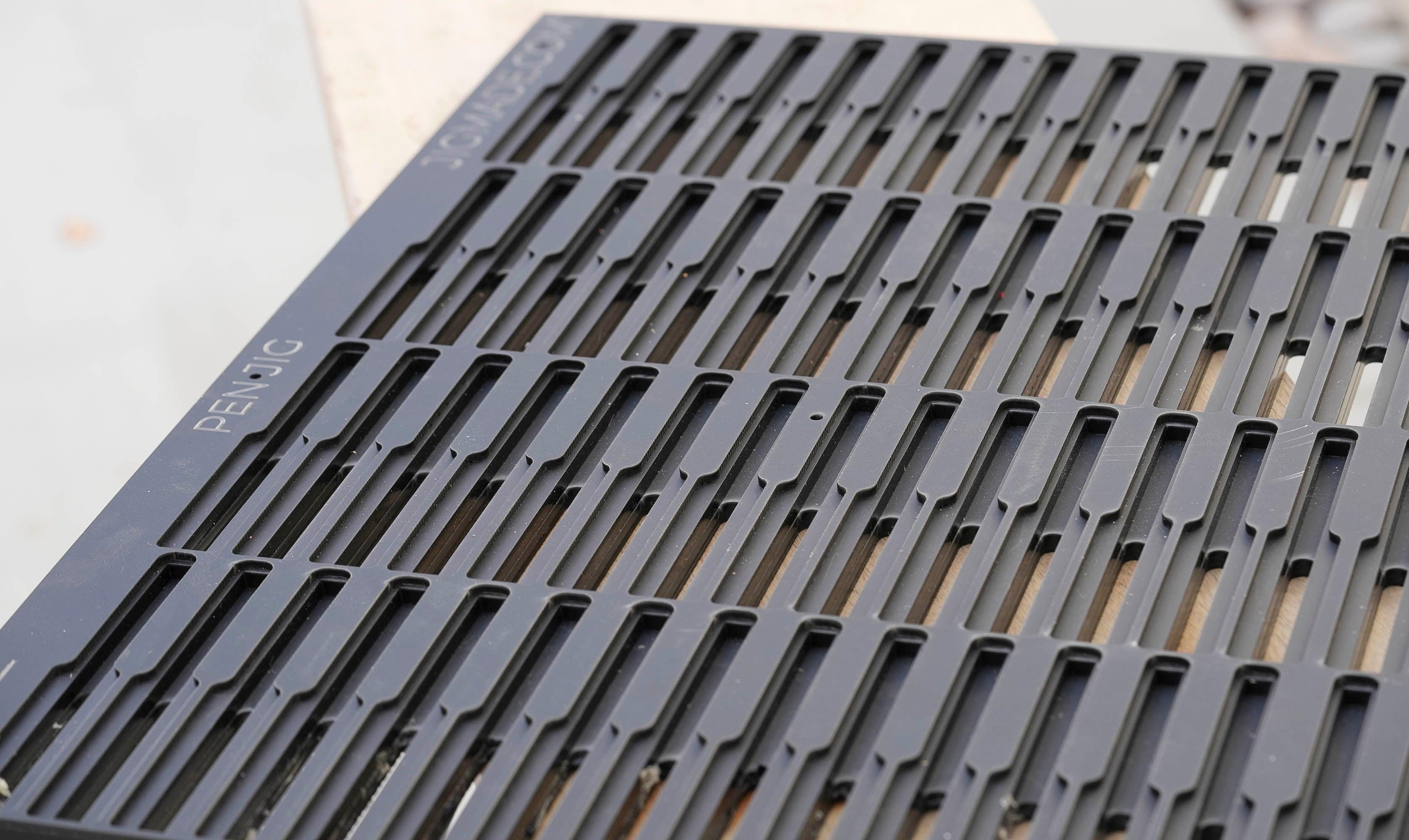

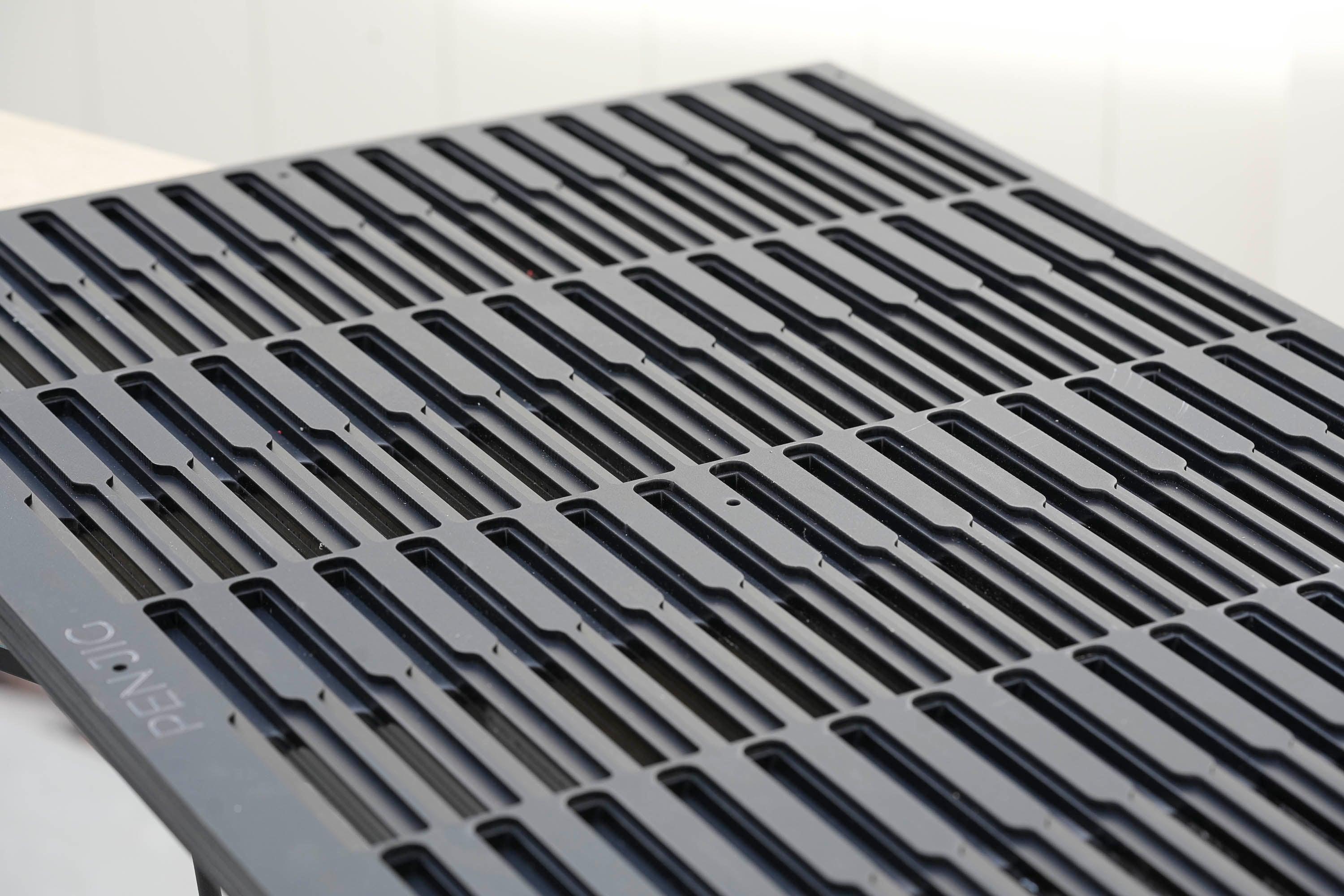

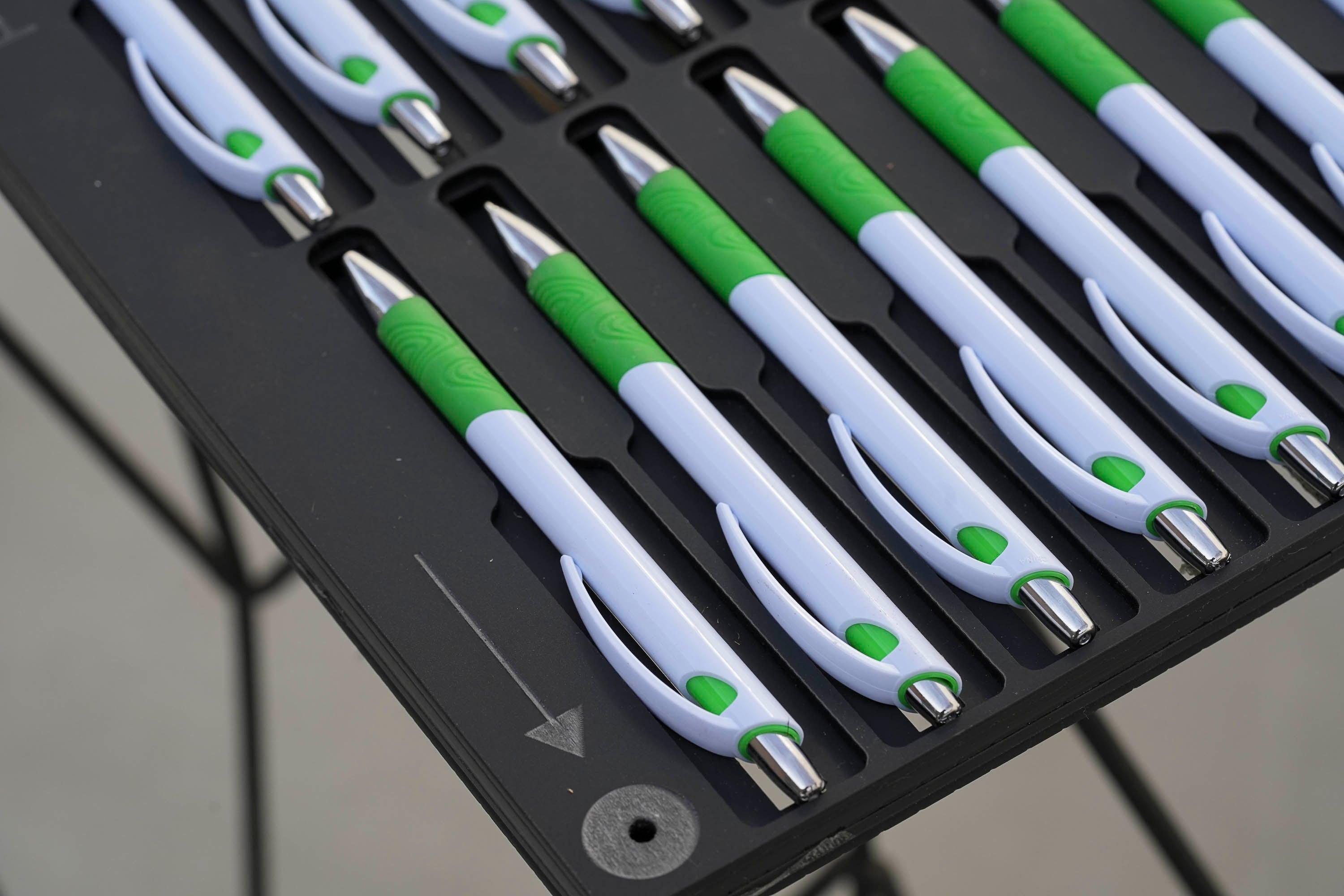

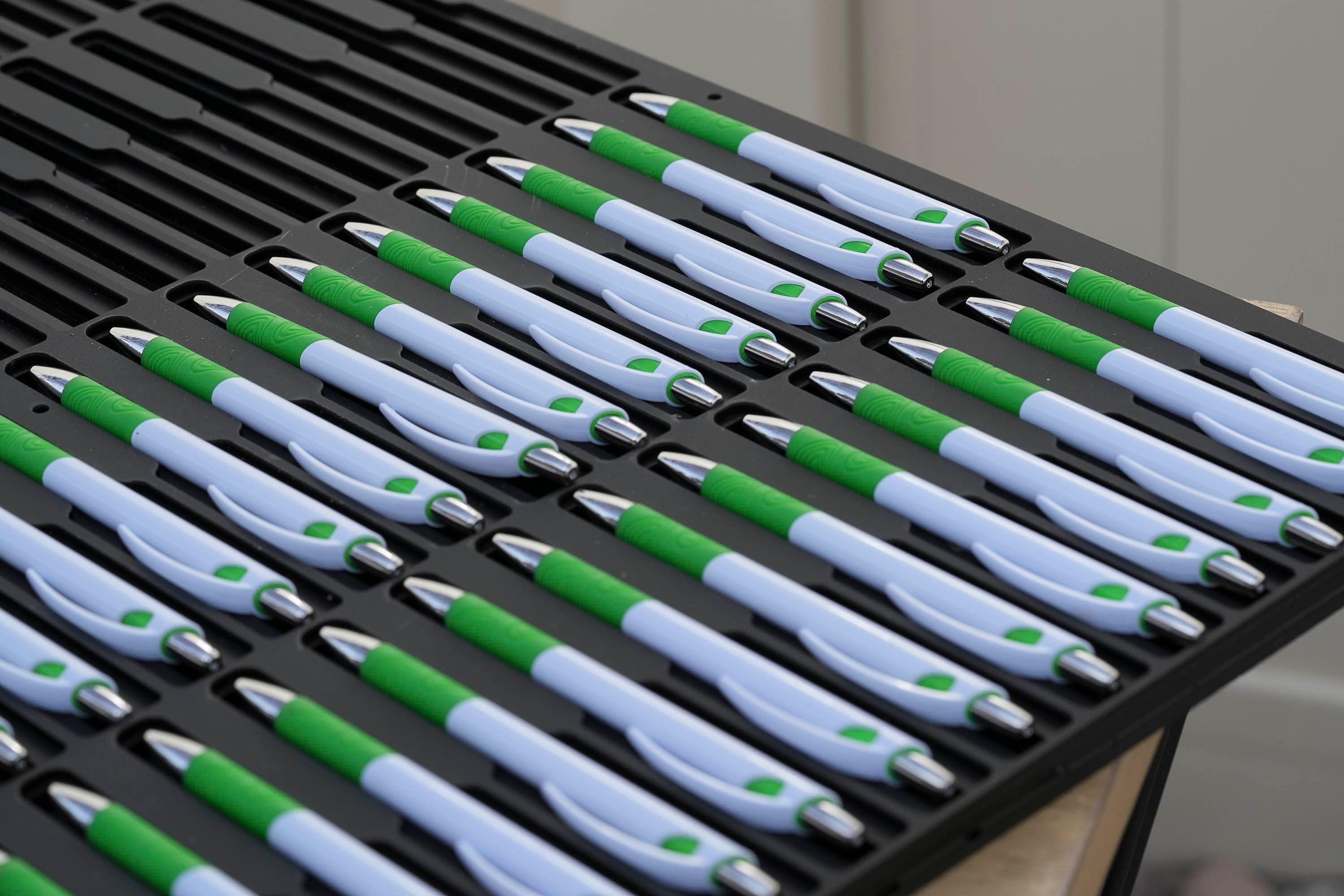

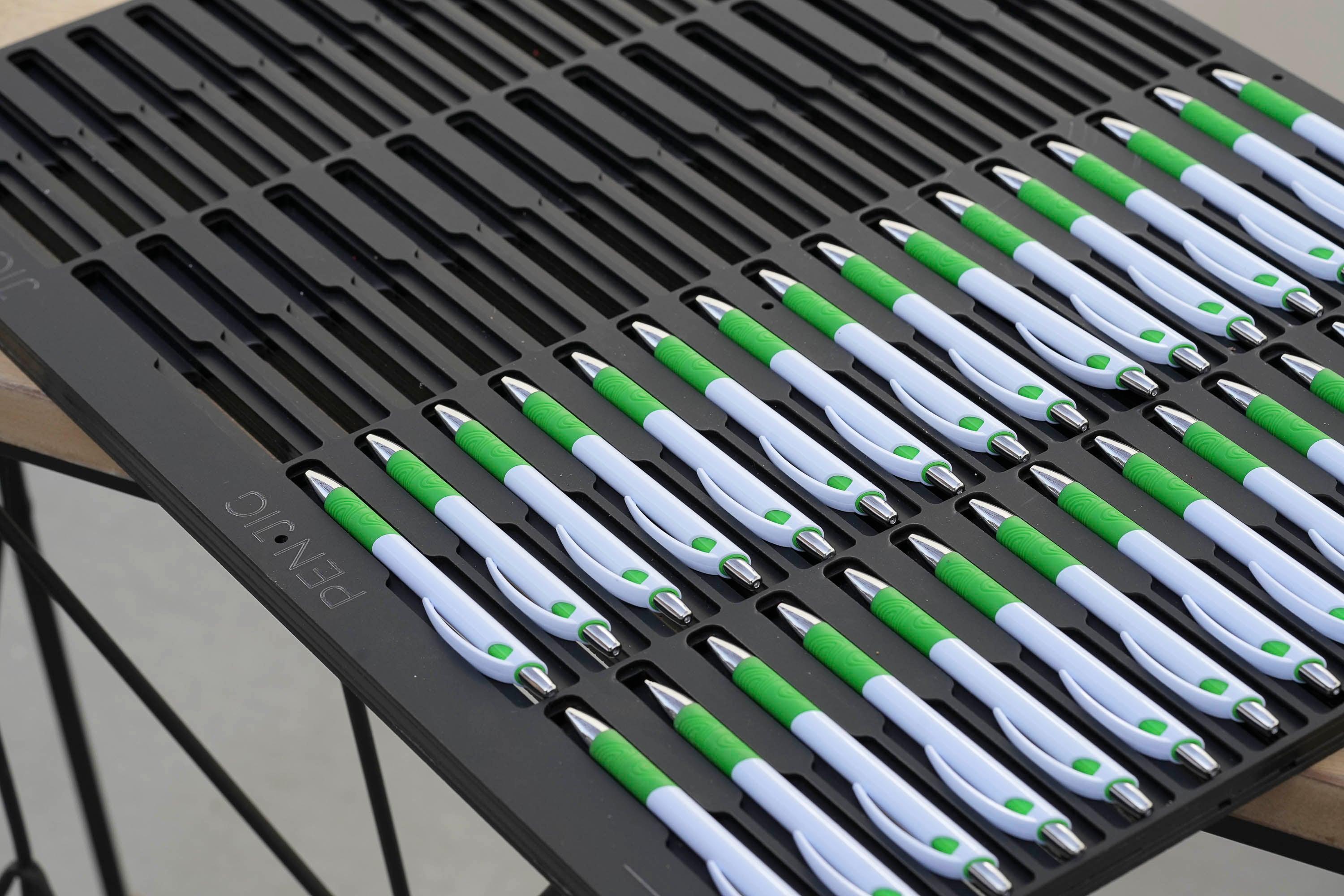

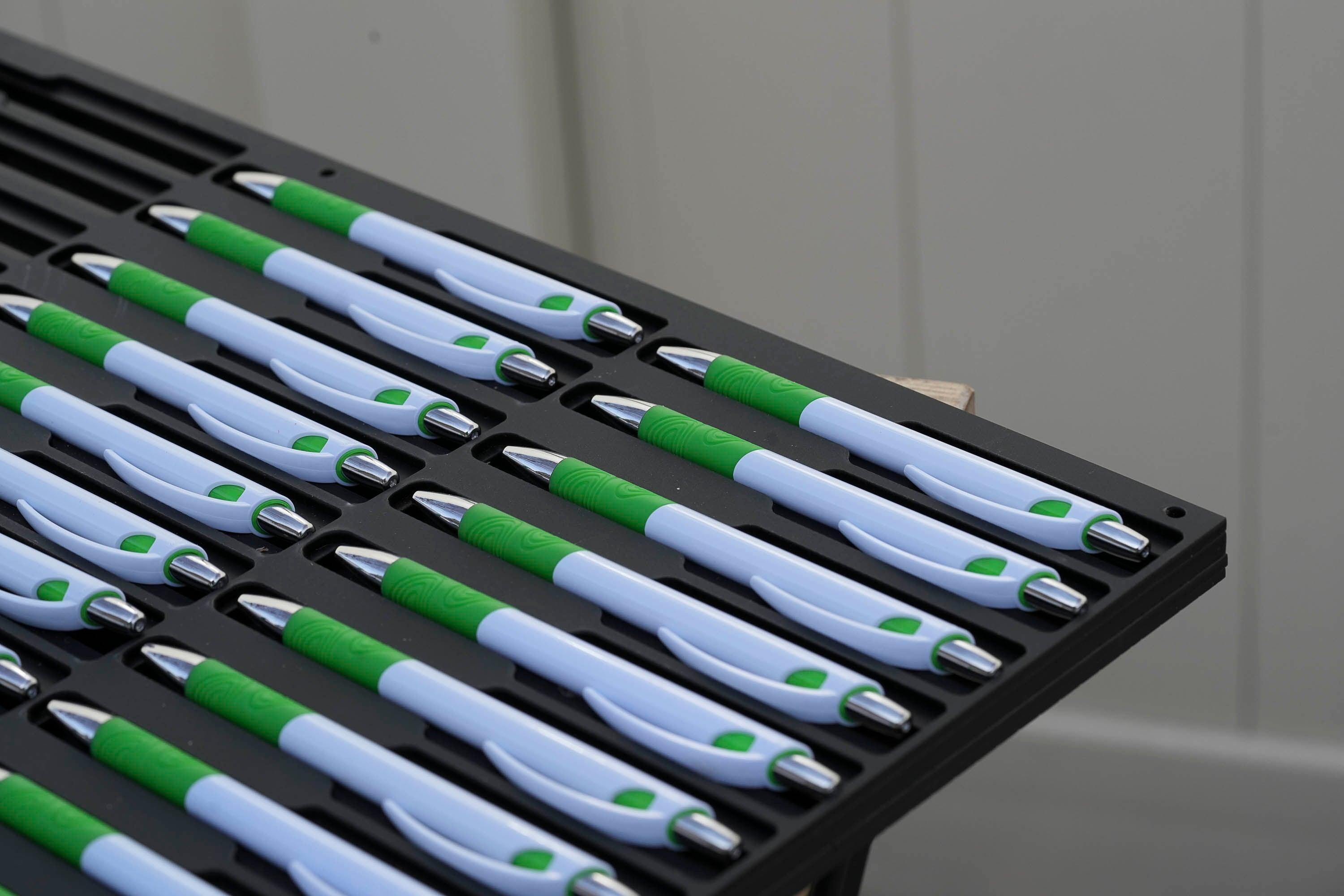

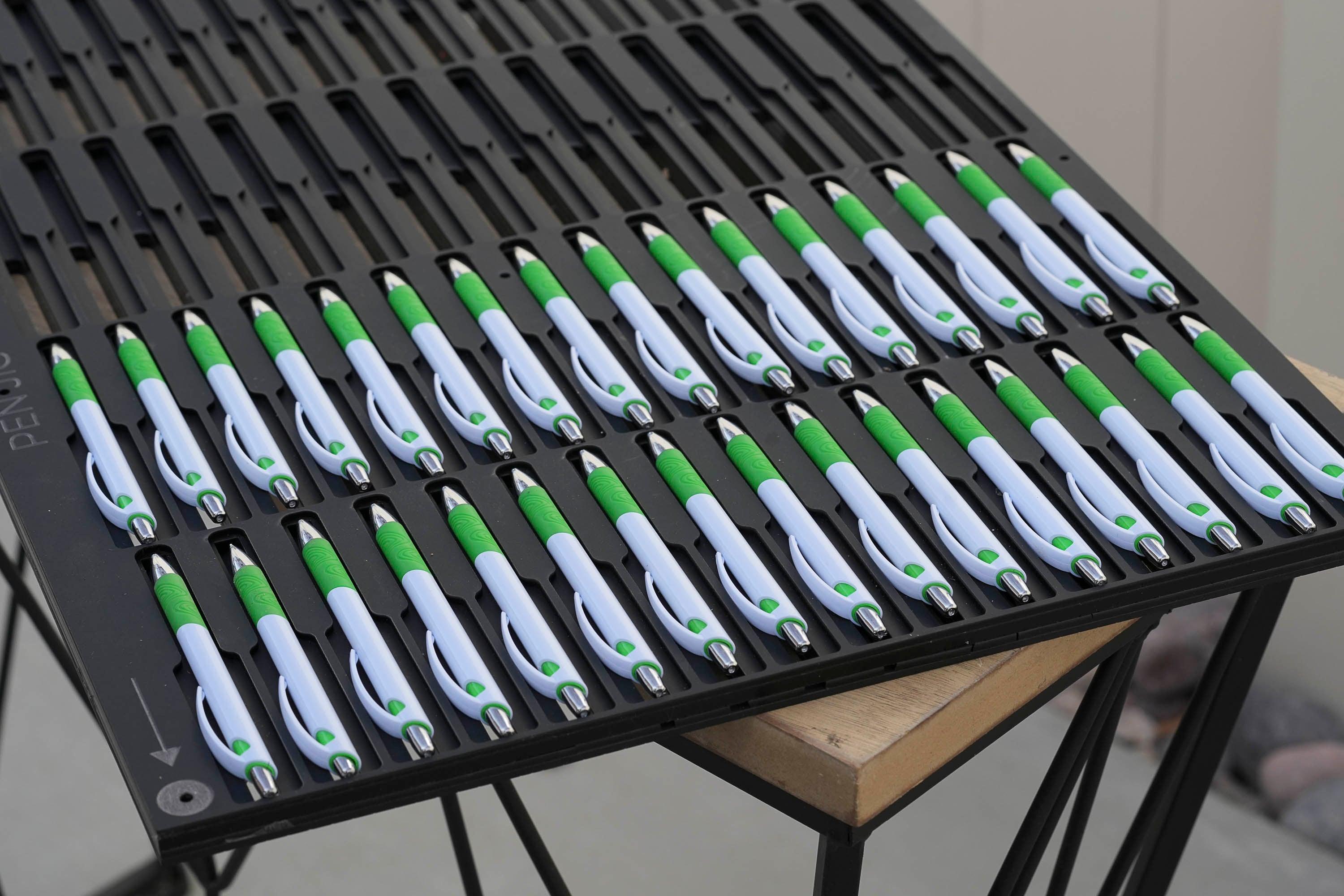

This 60-slot straight edge pen printing jig is designed for MIMAKI UJF 6042, UJF 6042 MKII, and UJF 6042 MK IIe UV printer users who need a repeatable setup for printing pens with consistent positioning and alignment.
The jig is designed to fit within the printer’s maximum print area and includes a matching digital PDF template to help streamline artwork placement before printing. This setup is ideal for production environments where faster loading, consistent spacing, and repeatable print alignment are important.
Features
- Designed for straight edge pen printing on MIMAKI UJF 6042 series UV printers.
- 60-slot layout helps improve production efficiency for multi-pen printing.
- Supports repeatable product placement for consistent print alignment.
- Includes a matching digital PDF template for artwork setup.
- Designed for users who need faster setup and more consistent production workflow.
- Suitable for promotional product decorators, print shops, and UV printing businesses.
Specifications
- Product Type: Straight edge pen printing jig.
- Slot Capacity: 60 pen slots.
- Compatible Printer Print Area: Approximately 24 in x 16.5 in.
- Compatible Printer Models: MIMAKI UJF 6042, MIMAKI UJF 6042 MKII, and MIMAKI UJF 6042 MK IIe.
- Template Format: Instant digital PDF template.

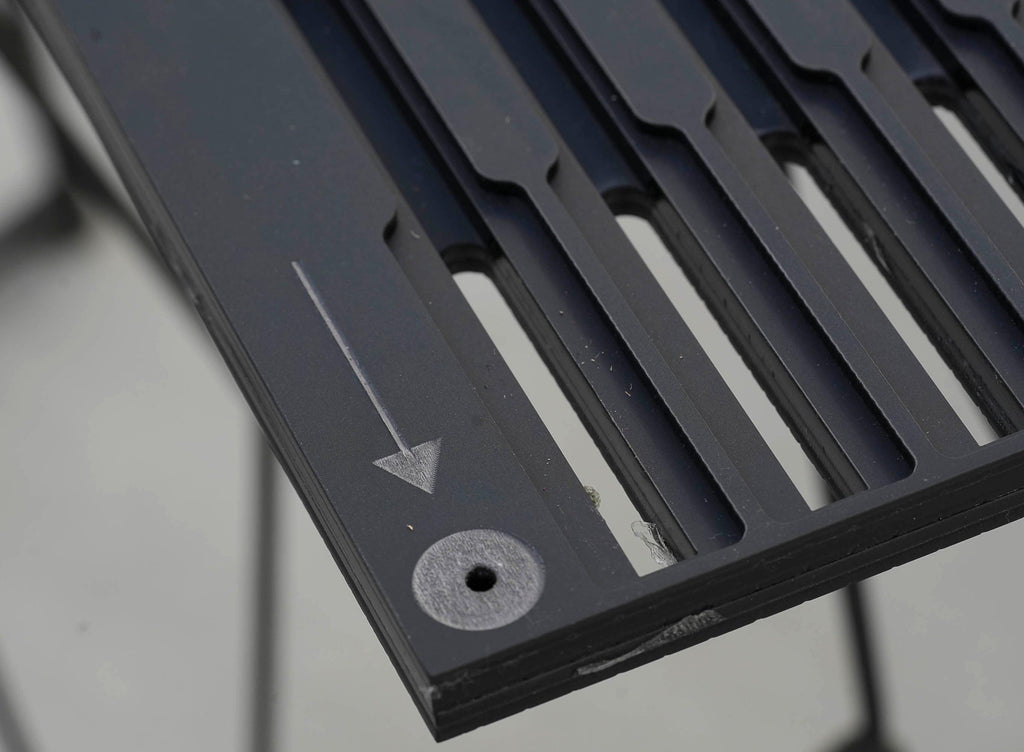

- Setup Style: Designed for printer-bed alignment workflow.
- Production Use: Made for repeatable UV printing setup.
What's Included
- Qty 1 physical straight edge pen printing jig.
- Qty 1 instant digital download PDF print template.
- Qty 1 digital PDF jig installation instruction guide.
- Printer, pens, printed samples, and accessories are not included.
Compatibility
- Compatible with MIMAKI UJF 6042 UV printer.
- Compatible with MIMAKI UJF 6042 MKII UV printer.
- Compatible with MIMAKI UJF 6042 MK IIe UV printer.
- Designed for straight edge pen printing workflows.
- Not guaranteed to fit other printer models unless listed as compatible.
